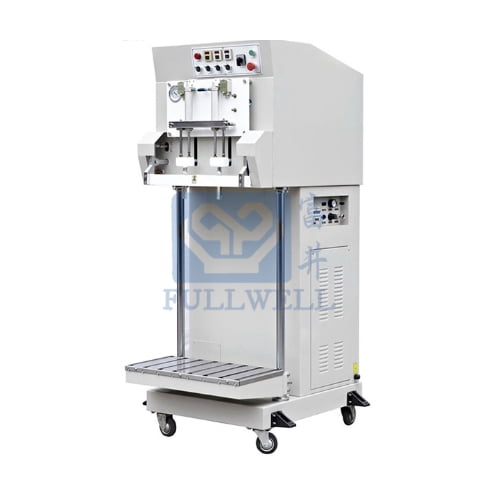

CE-600/DZQ series External Type Vacuum Packing Machine not only can do the process of sealing, but also vacuum extraction or inert gas flushing after vacuum cycle.
External Type Vacuum Packing Machine has chamber less design with double gas nozzles, so its application is not limited by the size of vacuum chamber.
External Type Vacuum Packing Machine is suitable for package which has low demand on vacuum degree but high demand on the purity of inert-gas. Model CE-600DZQ/LS with double heating system is suitable for thick plastic or compound bag. The special sealing length 700, 800 or 1000 mm is available.
|
Model |
CE-600L/DZQ |
|
Voltage (V/Hz) |
AC 220/50 |
|
Sealing power (W) |
600 |
|
Motor power (W) |
750 |
|
Air compressor power (W) |
1100 |
|
Sealing length (mm) |
600 700 800 1000 |
|
Sealing width (mm) |
10 |
|
Distance from sealing center to floor(mm) |
1250 |
|
Vacuum pump rate (m3/h) |
20 |
|
Film thickness (Single layer) mm |
≤ 0.18 |
|
External dimension (LxWxH) mm |
800 x 900 x 1900 |
|
Net weight (kg) |
255 |
