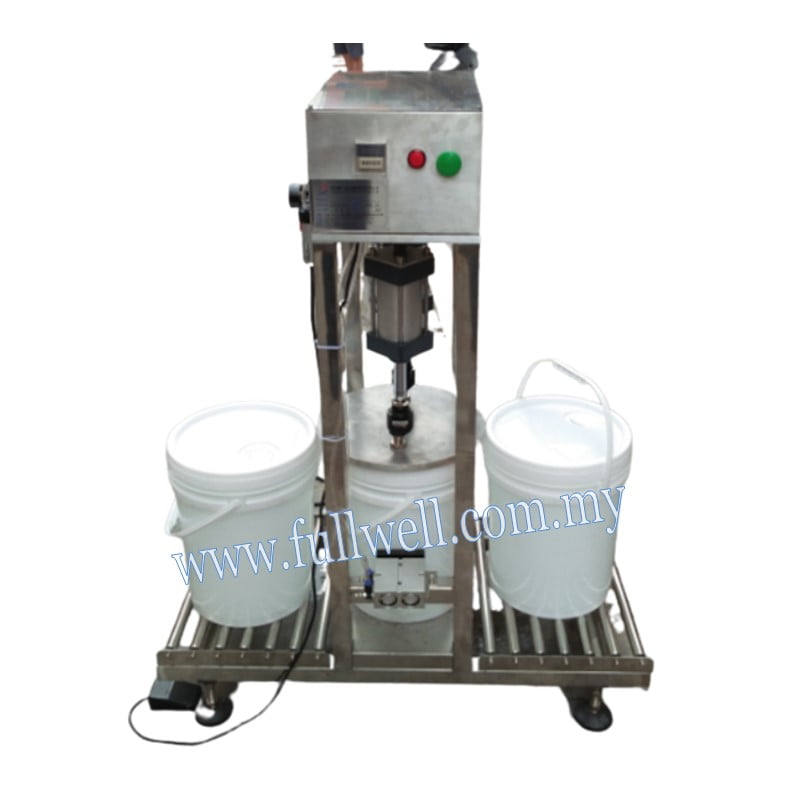

The upper cover of the drum type capping machine adopts the design of the stainless steel chain plate at the lower part of the unpowered roller capping machine, which is convenient to operate, simple to maintain and reliable in operation. It is suitable for capping large drums such as lubricating oil barrels and paint barrels. Its working principle is through stainless steel. The chain plate rotates, and the bottle body is put on the flat cap and then passed through the unpowered roller to achieve the purpose of capping. This machine has the characteristics of reasonable design, compact structure, fast capping speed, strong reliability, simple operation, convenient maintenance and so on. , It is the ideal equipment for the automatic capping process in the pharmaceutical, food, chemical, daily chemical and other industries. This machine adopts the integrated product of electricity and instrument, adopts full-roller conveying, double-cylinder cap, and uses cross force to press better It is more sealed and the height of the barrel can be adjusted. It is used in paint barrels, lubricants, glue barrels, fish barrels, paint barrels, skin care products, cleaning, detergent barrels, fresh juice barrels and other products
Technical Parameters
| Model | CE-300/YTJ |
| Voltage | 220V Single phase, 50hz |
| Power | 0.75kw |
| Air source requirements | 0.4 – 0.6 mpa |
| Applicable bottle height | 100 – 350 mm |
| Applicable bottle cap | Flat cover |
| Bottle diameter | Φ 100 – 300 mm |
| Pass rate | ≥ 99% |
| Machine shell | Stainless steel 304 |
| Dimensions | 1500×600×1600mm
(including conveyor belt) |
| Weight | 60 kg |
