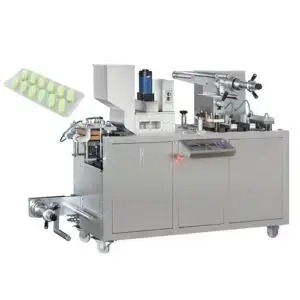

AUTOMATIC BLISTER PACKING MACHINE-JY-88E/PZBZJ

Looking for Enquiry?

Ask for a quotation now and let us serve you!

APPLICATION:

It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminium/Aluminium material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc. for packing.

TECHNICAL PARAMETER:

Model	JY-88E/PZBZJ
Brand	JAYARIA
Punch frequency (times)	10-33times/min (based on blister size)
Production capacity	1980 plates/hour
Max forming are & depth	90 x 70 (standard depth <15mm) Max depth 25mm (as adjusted)
Standard stroke range	30-80mm (can be adjust)
Air pressure	0.4-0.6Mpa
Compressed air required	Air compressor >0.3m³/min
Voltage	220v 50Hz 2.4kw
Main motor	0.75kw
PVC Hard film	0.15-0.5 x 110mm
PTP Aluminium film	0.02-0.035 x 110mm
Dialysis Paper	50-100g x 110mm
